Vacuum Controller Feature

Auto evaporation mode Pilot 100 detects the vapor pressure and keep vacuum at optimal level to avoid bumping. Feel free to start and leave.
Graphical User Interface Processes of Pilot 100 can be defined via its user-friendly GUI. With intuitive drop-down lists and modules up to 10 steps, it provides user full flexibility of control.
High Compatibility Pilot 100 Vacuum Controller can be installed with most of vacuum sources including diaphragm pumps, piston pumps, rotary vane pumps, etc.
Touch panel Touch panel of Pilot 100 reads the taps underneath thick lab gloves, making the control easy and convenient.
Detachable & remote control Control panel of Pilot 100 is detachable from its magnetic mount base and can be remotely controlled.

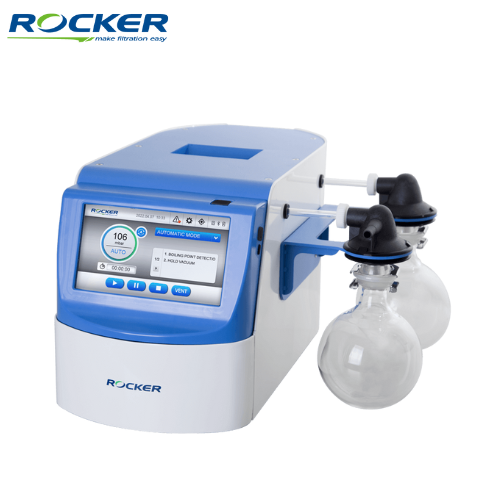

Pilot 100 Vacuum Controller Specification

▸ Model: Pilot 100 ▸ Power input: DC24V, 1A ▸ Resolution: 1 digit ▸ Pressure display: mbar, hPa, torr ▸ Display: 7” touch screen ▸ Measuring range: 1100 ~ 0 mbar abs. ▸ Measurement accuracy: ± 2 mbar (after adjustment, constant temp.) ▸ Setting range: 1013 ~ 0 mbar ▸ Housing material: Plastic ▸ Venting valve: Yes ▸ Auto-cleaning: Yes ▸ Power: 15 W ▸ Hose barb: ID 8 ~ ID10 ▸ Safety: Over-pressure Protection, Error Message ▸ Dimension ( L x W x H ): 21 x 20 x 18 cm ▸ Net weight: 2.2 Kg

Description

MODEL – Lab Vacuum Pumps

Lab Pumps

All Pump Accessories

vacuum pumps with our essential vacuum pump accessories designed to boost performance and convenience. From flexible Silicone Tubes to Universal Foot Switches for hands-free control, each component ensures reliable operation for a range of applications.

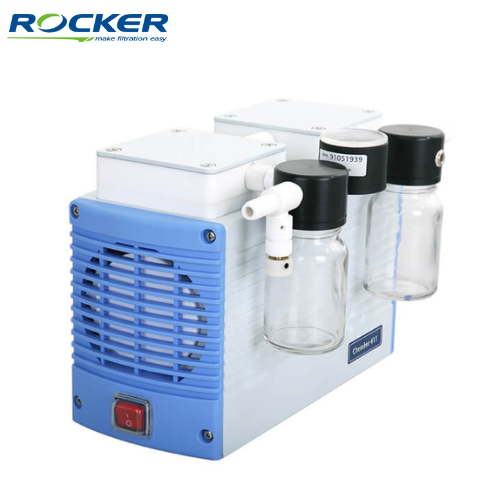

Achieve precise vacuum control with Moisture Traps and Vacuum Regulators tailored for Rocker and Chemker models, preventing moisture ingress and maintaining stable pressure levels. Explore solutions like the Glass Vapor Trap for Chemker pumps and multi-functional regulators for the Rocker series, each offering enhanced protection and efficiency.
