Bench Meters 2000 Series Custom LCD LAQUA EC2000

Features
Specifications
Description
Reviews (0)

Up to 2.000 S/cm conductivity range
Adjustable reference temperature: 15 to 30 °C
Adjustable temperature coefficient: 0.00 to 10.00 % per °C
Accepts 0.0700 to 13.000 cell constant
Allows auto and manual conductivity calibrations
Up to 5 conductivity calibration points
Auto ranging S/cm and S/m conductivity units
0.01 mg/L to 100 g/L TDS range
Pre-programmed TDS curves: Linear (0.40 to 1.00 TDS factor), EN27888, 442, & NaCl
0.000 Ω•cm to 20.0 MΩ•cm resistivity range
0.0 to 100.0 ppt and 0.00 to 10.00 % salinity ranges
Pre-programmed salinity curves: NaCl and seawater
-30.0 to 130.0°C / -22.0 to 266.0°F temperature range with calibration option
Auto stable, auto hold, and real time measurement modes
Electrode status, temperature, and reading stability indicators viewable at a glance
Large memory accepting up to 2000 data sets with date/time stamp
Auto data log function with adjustable time interval
Real time clock facilitating time-dependent functions
Adjustable auto shut-off time up to 30 mins.
Password protected set-up mode for security
Software upgrade capability
PC communication via USB cable and complimentary data acquisition software
Printer communication via RS232 cable
5” Digital, custom LCD display with backlight
Sleek design with easy-to-use interface and audible key sound feedback

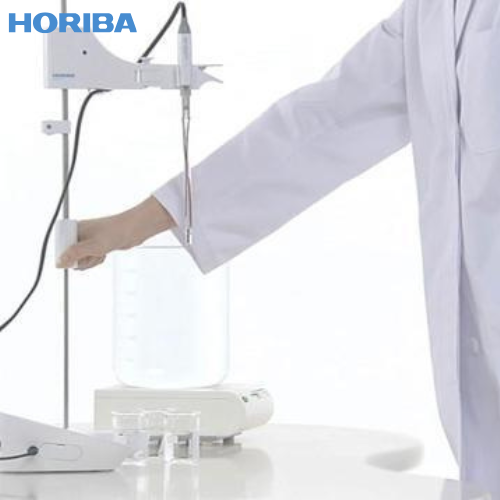

Small meter footprint with adjustable, integrated electrode stand
3 Years warranty

Meter Kits Available

Meter Kit	Package Details
EC2000	• Meter with integrated electrode stand • Universal power adaptor with 6 plugs • Manual
EC2000-S	• EC2000 • 9382-10D Ti/Pt black plastic-body conductivity cell k=1.0 with built-in temperature sensor • 503-S Conductivity standard solutions kit

	LAQUA-EC2000
Model	Name	LAQUA-EC2000
Model	Description	Conductivity/Resistivity/TDS/Salinity/Temperature (°C/°F) Bench Meter
Conductivity	Range	0.000 to 1.999 µS/cm (k = 0.1) 2.00 to 19.99 µS/cm (k = 0.1, 1) 20.0 to 199.9 µS/cm (k = 0.1, 1, 10) 200 to 1999 µS/cm (k = 0.1, 1, 10) 2.00 to 19.99 mS/cm (k = 0.1, 1, 10) 20.0 to 199.9 mS/cm (k = 1, 10) 0.200 to 2.000 S/cm (k = 10)
	Units	Auto ranging S/cm, S/m (µS ↔ mS ↔ S)
	Resolution	0.05% full scale
	Accuracy	± 0.6% full scale; ± 1.5% full scale > 18.0 mS/cm
	Reference Temperature	15.0 to 30.0 °C (adjustable)
	Temperature Coefficient	0.00 to 10.00 % per °C (adjustable)
	Cell Constants	0.070 to 13.00 (adjustable)
	Calibration Points	Up to 4 (Auto) / Up to 5 (Manual)
Resistivity	Range	0.001 MΩ・cm to 20.0 MΩ・cm
	Resolution	0.5% full scale
	Accuracy	± 0.6% full scale; ± 1.5% full scale > 1.80 MΩ・cm
Total Dissolved Solids (TDS)	Range	0.01 to 9.99 mg/L (ppm) 10.0 to 99.9 mg/L (ppm) 100 to 999 mg/L (ppm) 1.00 to 9.99 g/L (ppt) 10.0 to 100 g/L (ppt)
	Resolution	0.01, 0.1, 1 mg/L ↔ g/L (ppm ↔ ppt)
	Accuracy	± 0.1% full scale
	TDS Curves	EN27888, 442, NaCl, Linear (0.40 to 1.00)
Salinity	Range	0.0 to 100.0 ppt / 0.00 to 10.00 %
	Resolution	0.1 ppt / 0.01%
	Accuracy	± 0.2% full scale
	Salinity Curves	NaCl / Seawater
	Calibration Option	Yes (Manual; 1 point)
Temperature	Range	-30.0 to 130.0 °C / -22.0 to 266.0 °F
	Resolution	0.1 °C / °F
	Accuracy	± 0.5 °C / ± 0.9 °F
	Calibration Option	Yes (± 10.0 °C / ± 18.0 °F range in 0.1 °C increments)
General	Memory	2000
	Auto Data Log	Yes
	Real-time Clock	Yes
	Date & Time Stamp	Yes
	Measurement Modes	Auto Stable / Auto Hold / Real Time
	Auto Shut-Off	Yes (Programmable: up to 30 mins.)
	Electrode Status	On screen display
	Diagnostics	Yes
	Password Setting	Yes
	Software Upgrade	Yes
	PC / Printer Communication	Phono jack (USB / RS232C)
	Meter Inputs	BNC, phono, DC sockets
	Display	5" Custom LCD with backlight and 320 segments
	Power Requirement	AC adaptor 100 - 240V, 50 - 60Hz
	Dimensions & Weight	155(L) x 150(W) x 67(H) mm, 765g

scrollable

Description

MODEL – LAQUA EC2000

Benchtop Conductivity/Resistivity/Salinity/Total Dissolved Solids/Temperature Meter

Compact and Powerful

Water quality analysis is repeatedly performed in laboratories on a daily basis. Our compact and powerful benchtop model was developed to provide simplicity with excellent on-site usability.
