Bench Meters Touchscreen Color LCD LAQUA F-73

Features
Specifications
Description
Reviews (0)

LAQUA’s large capacitance touch screen panel:

Display easy-to-understand values and function menus
Switch between digital real-time graphs or analogue displays during measurement with just a flick of a finger
Full on-screen support on the meter via an electronic user guide with colour pictures, featuring a problem solver guide for calibration or measurement

Functions:

Easy navigation for main unit and electrode inspections
Two channels can be displayed simultaneously
Periodic inspection mode: JIS / Pharmacopeias / Digital Simulator
Customizable auto-hold function for calibration and measurement
Simultaneous connection to a GLP/GMP compatible printer and PC
Digital memory – maximum 2,000 sets of measurement data can be recorded
USB-PC communication and USB memory
Multi-language support (Japanese, English, Chinese, Korean)

Meter Kits Available

Meter Kit	Package Details
F-73G	F-73 meter Electrode stand Protection cover Universal power adaptor with 6 plugs Instruction manual
F-73A-S	F-73G 9615S-10D Standard ToupH, glass-body, refillable pH electrode with built-in temperature sensor 502-S: pH 4.01, 7.00, 10.01 buffers and 3.33 M KCl reference electrolyte (250ml each)
F-73A-SN	F-73G 9615S-10D Standard ToupH, glass-body, refillable pH electrode with built-in temperature sensor 501-S: pH 4.01, 6.86, 9.18 buffers and 3.33 M KCl reference electrolyte (250ml each)
F-73A-S-CFR	F-73G 9615S-10D Standard ToupH, glass-body, refillable pH electrode with built-in temperature sensor 502-S: pH 4.01, 7.00, 10.01 buffers and 3.33 M KCl reference electrolyte (250ml each) LAQUA 21 CFR Part 11 Software
F-73A-SN-CFR	F-73G 9615S-10D Standard ToupH, glass-body, refillable pH electrode with built-in temperature sensor 501-S: pH 4.01, 6.86, 9.18 buffers and 3.33 M KCl reference electrolyte (250ml each) LAQUA 21 CFR Part 11 Software

scrollable

	LAQUA F-73
pH	Measurement method	Glass electrode method
	Measurement range	pH 0.000～14.000
	Display range	pH -2.000～20.000
	Resolution	0.01/0.001 pH
	Auto range select	○
	Repeatability	±0.001 pH±1 digit
	pH calibration point	5
	Repeatability check	○
	Alarm limit of calibration	○
	Periodical check	○
mV (ORP)	Measurement range	±1999.9 mV
	Resolution	0.1 mV
	Repeatability	±0.1 mV±1 digit
Temperature	Measurement range	0.0～100.0℃ (-30.0～130.0℃)
	Resolution	0.1℃
	Repeatability	±0.1℃±1 digit
ION	Measurement method	Ion electrode method
	Measurement range	0.000 μg/L～9999 g/L (mol/L)
	Resolution	4 significant digits
	Repeatability	±0.5% ±1 digit
	Periodical check	○
	Calibration curve point	5
	Addition method measurement	○
Input/output	Input (CH)	2
	USB peripherals (Communication with PC)^*1	○
	USB host (USB memory)	○
	RS-232C (Printer/PC)	○
	Analog output	○
Data	Memory number	2,000
	Interval memory	○
	ID input	○
	Data search	○
Display	Display	Color graphic LCD with capacitive Touch Panel
	Dual component display	○
	Multilanguage display	Japanese/English/Chinese/Korean
Function	Navigation function	○
	User guide	○
	Graph display	○
	Printer connectivity（GLP/GMP）	○
	Custom printing function	○
	Temperature compensation（Auto/manual)	○
	AutoHold function	○
	AutoHold setting	○
	Stability function (pH/ION)	○
	Register operator	○
	Security (password)	○
	Version up function	○
Ambient temperature		0 ℃ ～ 45℃
Power		AC adaptor 100 ～ 240 V 50/60 Hz
Dimensions		170(W)×174(D)×73(H) mm (Excluding electrode stand and AC adaptor)
Power consumption		Approx. 9.8 VA
Mass of main unit		Approx. 700 g

scrollable

Description

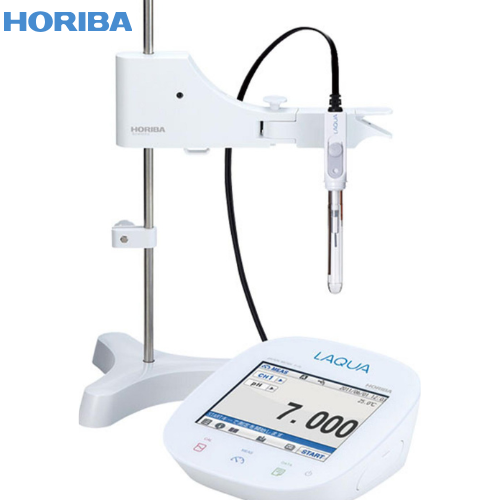

MODEL – LAQUA F-73

Benchtop pH/ORP/Ion/Temperature Meter

Stress-Free Measurement, High-End Model

Water quality analysis is repeatedly performed in laboratories on a daily basis. Our high-end benchtop model was developed to provide simplicity with excellent on-site usability – from operation and maintenance through to troubleshooting.
