Handheld Meters LAQUA EC210 200 Series

Features
Specifications
Description
Reviews (0)

Automatic calibration (up to 4 points) and manual calibration (up to 5 points)
Adjustable reference temperature and temperature coefficient
Adjustable cell constant and selectable measurement unit
Automatic / manual temperature compensation and calibration
Conductivity and total dissolved solids (TDS) conversion
Four TDS calibration curves: EN27888, Linear, 442, NaCl
Two salinity calibration curves: NaCl, Seawater
Selectable °C / °F temperature readings
Auto log function – stores up to 500 data sets
Auto Stable, Auto Hold, and Real-Time measurement modes
Programmable auto shut-off (up to 30 minutes)
Monochrome LCD with white LED backlight (50 × 50 mm)
Powered by 2 × AA batteries
IP67 waterproof/dustproof casing, shock & scratch resistant, non-slip
Packaged with electrode and calibration solutions in carrying case
3 years meter warranty

Meter Kit Available

EC210-K

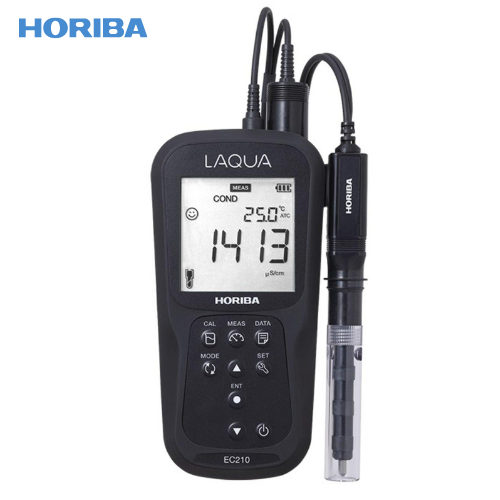

Horiba LAQUA EC210 Conductivity/Resistivity/Salinity/TDS/Temperature Meter Kit

Package Details

LAQUA EC210 Conductivity/Resistivity/Salinity/TDS/Temperature meter
2 × AA batteries
Manual and quick guide
9383-10D plastic-body Ti/Pt black conductivity probe (k = 1.0) with integrated temperature sensor
84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm conductivity standard solutions (60 ml each)
Carrying case

LAQUA EC210 Specifications

Model	LAQUA EC210 Conductivity / Resistivity / Salinity / TDS / Temperature (°C/°F)
Conductivity Range	...µS/cm to 200.0 mS/cm (k=1.0)
Resolution	0.05% full scale
Accuracy	±0.6% full scale; ±1.5% full scale > 18.0 mS/cm
Reference Temperature	15 to 30 °C (adjustable)
Temperature Coefficient	0.00 to 10.00% (adjustable)
Cell Constant	0.1, 1.0, 10.0 (adjustable)
Calibration Points	Up to 4 (Auto) / Up to 5 (Manual)
Measurement Unit	S/cm, S/m (selectable / auto-ranging)
TDS Range	...ppm to 100 ppt (TDS factor=0.5)
Resolution	0.01 ppm (mg/L) / 0.1 ppt (g/L)
Accuracy	±0.1% full scale
TDS Curves	Linear (0.40 to 1.00), EN27888, 442, NaCl
Resistivity Range	0.000 Ω•cm to 20.0 MΩ•cm
Resolution	0.05% full scale
Accuracy	±0.6% full scale; ±1.5% full scale > 18.0 MΩ•cm
Salinity Range	0.0 to 100.0 ppt / 0.00 to 10.00 %
Resolution	0.1 ppt / 0.01%
Accuracy	±0.2% full scale
Salinity Curves	NaCl / Seawater
Calibration Option	Yes
Temperature Range	-30.0 to 130.0 °C / -22.0 to 266.0 °F
Resolution	0.1 °C / °F
Accuracy	± 0.5 °C / ± 0.9 °C
Calibration Option	Yes
Memory Data	500
Auto Log Data	Yes
Measurement Modes	Auto Stable, Auto Hold, Real Time
Auto Shut-Off	Yes (Programmable: up to 30 minutes)
Electrode Status	Yes (On screen display)
Diagnostic Messages	Yes
Meter Inputs	BNC (for conductivity electrode), phono (for temperature sensor)
Display	Custom LCD with backlight
Housing	IP67, shock & scratch resistant, non-slip
Power Requirement	2 x AA batteries
Battery Life	> 500 hours
Meter Dimensions	160 (L) x 80 (W) x 40.60 (H) mm
Meter Weight	Approx. 260g (with batteries) / 216g (without batteries)

Description

MODEL – LAQUA EC210

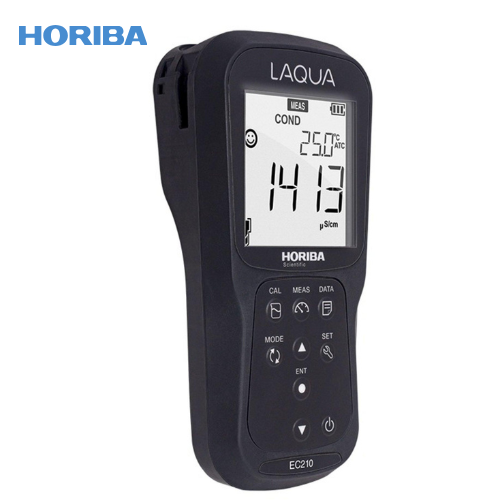

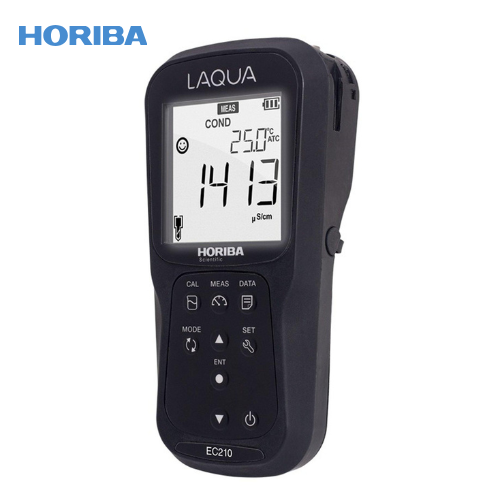

Handheld Conductivity/Resistivity/Salinity/Total Dissolved Solids/Temperature Meter

Waterproof standard handheld meters with backlit LCD, shockproof & scratch-resistant non-slip casing, built-in electrode stand, and foldable meter stand in durable carrying case for routine water quality testing in the field.
