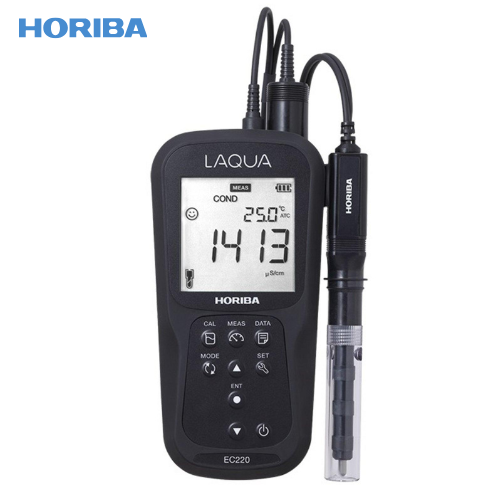

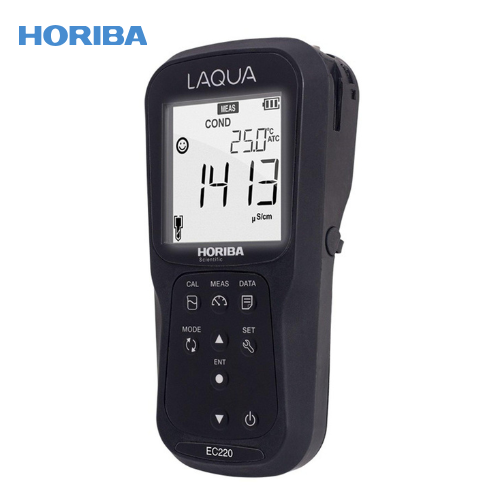

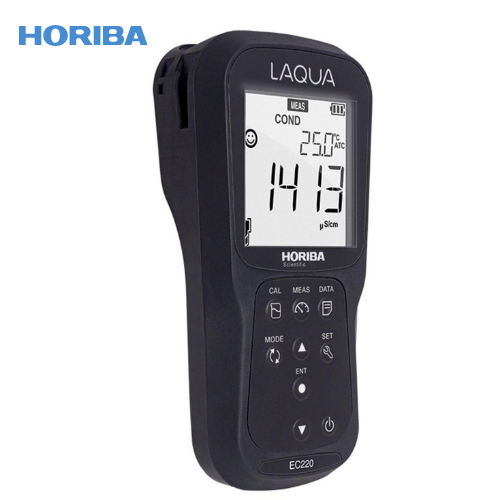

Handheld Meters LAQUA EC220 200 Series

Features
Specifications
Description
Reviews (0)

Automatic calibration (up to 4 points) and manual calibration (up to 5 points)
Adjustable reference temperature and temperature coefficient
Adjustable cell constant and selectable measurement unit
Automatic / manual temperature compensation and calibration
Conductivity and total dissolved solids (TDS) conversion
Four TDS calibration curves: EN27888, Linear, 442, NaCl
Two salinity calibration curves: NaCl, Seawater
Selectable °C / °F temperature readings
Real-time clock with date/time stamp for GLP compliance
Auto log function – stores up to 1000 data sets
Auto Stable, Auto Hold, and Real-Time measurement modes
Programmable auto shut-off (up to 30 minutes)
Monochrome LCD with white LED backlight (50 × 50 mm)
Phono jack output for PC connection via USB cable and printer connection via RS232 cable
Powered by 2 × AA batteries
IP67 waterproof/dustproof casing, shock & scratch resistant, non-slip
Packaged with electrode and calibration solutions in carrying case
3 years meter warranty

Meter Kit Available

EC220-K

Horiba LAQUA EC220 Conductivity/Resistivity/Salinity/TDS/Temperature Meter Kit

Package Details

LAQUA EC220 Conductivity/Resistivity/Salinity/TDS/Temperature meter
2 × AA batteries
Manual and quick guide
9383-10D plastic-body Ti/Pt black conductivity probe (k = 1.0) with integrated temperature sensor
84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm conductivity standard solutions (60 ml each)
Carrying case

Model	LAQUA EC220 Conductivity / Resistivity / Salinity / Total Dissolved Solids / Temperature (°C/°F)
Conductivity Range	...µS/cm to 200.0 mS/cm (k=1.0)
Resolution	0.05% full scale
Accuracy	±0.6% full scale; ±1.5% full scale > 18.0 mS/cm
Reference Temperature	15 to 30 °C (adjustable)
Temperature Coefficient	0.00 to 10.00% (adjustable)
Cell Constant	0.1, 1.0, 10.0 (adjustable)
Calibration Points	Up to 4 (Auto) / Up to 5 (Manual)
Measurement Unit	S/cm, S/m (selectable / auto-ranging)
TDS Range	...ppm to 100 ppt (TDS factor=0.5)
Resolution	0.01 ppm (mg/L) / 0.1 ppt (g/L)
Accuracy	±0.1% full scale
TDS Curves	Linear (0.40 to 1.00), EN27888, 442, NaCl
Resistivity Range	0.000 Ω•cm to 20.0 MΩ•cm
Resolution	0.05% full scale
Accuracy	±0.6% full scale; ±1.5% full scale > 18.0 MΩ•cm
Salinity Range	0.0 to 100.0 ppt / 0.00 to 10.00 %
Resolution	0.1 ppt / 0.01%
Accuracy	±0.2% full scale
Salinity Curves	NaCl / Seawater
Calibration Option	Yes
Temperature Range	-30.0 to 130.0 °C / -22.0 to 266.0 °F
Resolution	0.1 °C / °F
Accuracy	±0.5 °C / ±0.9 °F
Calibration Option	Yes
Memory Data	1000
Auto Log Data	Yes
Real-time Clock	Yes
Date & Time Stamp	Yes
Measurement Modes	Auto Stable, Auto Hold, Real Time
Auto-Shut Off	Yes (Programmable: up to 30 minutes)
Electrode Status	Yes (On-screen display)
Diagnostic Messages	Yes
Software Upgrade	Yes via PC (USB) cable PN 3200779639
PC Communication	Yes via PC (USB) cable PN 3200779639
Printer Communication	Yes via Printer (RS232) cable PN 3200779638
Meter Inputs	BNC (for conductivity electrode), phono (for temperature sensor)
Meter Output	phono (for PC/printer connection)
Display	Custom LCD with backlight
Housing	IP67, shock & scratch resistant, non-slip
Power Requirement	2 × AA batteries
Battery Life	> 500 hours
Meter Dimensions	160 (L) × 80 (W) × 40.6 (H) mm
Meter Weight	Approx. 260 g (with batteries) / 216 g (without)

Description

MODEL – LAQUA EC220

Handheld Conductivity/Resistivity/Salinity/Total Dissolved Solids/Temperature Meter

Waterproof standard handheld meters with backlit LCD, shockproof & scratch-resistant non-slip casing, built-in electrode stand, and foldable meter stand in durable carrying case for routine water quality testing in the field.
