Handheld Meters LAQUA PC220 200 Series

Features
Specifications
Description
Reviews (0)

Automatic pH calibration – up to 5 points (NIST, USA) / up to 6 points (DIN)
0.01 pH resolution
Offset and average slope display
ORP calibration option
Automatic / manual temperature compensation and calibration
Automatic (up to 4 points) and manual (up to 5 points) conductivity calibration
Adjustable reference temperature and temperature coefficient
Adjustable cell constant and selectable measurement unit
Conductivity and TDS conversion
Four TDS calibration curves: EN27888, Linear, 442, NaCl
Two salinity calibration curves: NaCl, Seawater
Real-time clock and date/time stamp (GLP compliant)
Auto data logging – stores up to 1000 sets
Auto shut-off (programmable up to 30 minutes)
Measurement modes: Auto stable, Auto hold, Real-time
Calibration alarm (programmable up to 90 days)
Built-in electrode holder for 2 electrodes
Monochrome LCD with white LED backlight: 50 × 50 mm
PC connectivity via USB (phono jack) and printer connectivity via RS232
IP67 waterproof/dustproof, shock & scratch resistant, non-slip casing
Powered by 2 × AA batteries

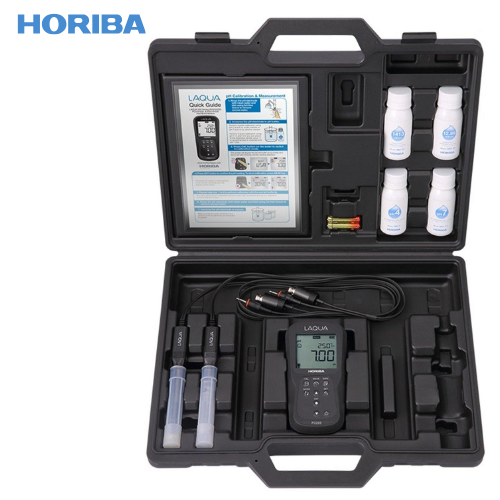

Packaged with electrodes and calibration solutions in carrying case
3 years meter warranty

Meter Kits Available

Meter Kit	Package Details
PC220-K	LAQUA PC220 Dual channel pH/ORP/Conductivity/Resistivity/TDS/Salinity/Temperature meter 2 × AA batteries Manual and quick guide 9652-10D pH electrode (plastic-body, gel-filled, with temperature sensor) 9383-10D conductivity probe (plastic-body, Ti/Pt black, k=1.0, with temperature sensor) pH 4.01 and 7.00 buffers, 1413 µS/cm and 12.88 mS/cm conductivity solutions (60 ml each) Electrode adapter Carrying case
PC220-KN	LAQUA PC220 Dual channel pH/ORP/Conductivity/Resistivity/TDS/Salinity/Temperature meter 2 × AA batteries Manual and quick guide 9652-10D pH electrode (plastic-body, gel-filled, with temperature sensor) 9383-10D conductivity probe (plastic-body, Ti/Pt black, k=1.0, with temperature sensor) pH 4.01 and 6.86 buffers, 1413 µS/cm and 12.88 mS/cm conductivity solutions (60 ml each) Electrode adapter Carrying case

Meter Kit

Package Details

PC220-K

LAQUA PC220 Dual channel pH/ORP/Conductivity/Resistivity/TDS/Salinity/Temperature meter
2 × AA batteries
Manual and quick guide
9652-10D pH electrode (plastic-body, gel-filled, with temperature sensor)
9383-10D conductivity probe (plastic-body, Ti/Pt black, k=1.0, with temperature sensor)
pH 4.01 and 7.00 buffers, 1413 µS/cm and 12.88 mS/cm conductivity solutions (60 ml each)
Electrode adapter
Carrying case

PC220-KN

LAQUA PC220 Dual channel pH/ORP/Conductivity/Resistivity/TDS/Salinity/Temperature meter
2 × AA batteries
Manual and quick guide
9652-10D pH electrode (plastic-body, gel-filled, with temperature sensor)
9383-10D conductivity probe (plastic-body, Ti/Pt black, k=1.0, with temperature sensor)
pH 4.01 and 6.86 buffers, 1413 µS/cm and 12.88 mS/cm conductivity solutions (60 ml each)
Electrode adapter
Carrying case

	LAQUA F-72
pH	Measurement method	Glass electrode method
	Measurement range	pH 0.000～14.000
	Display range	pH -2.000～20.000
	Resolution	0.01/0.001 pH
	Auto range select	○
	Repeatability	±0.001 pH±1 digit
	pH calibration point	5
	Repeatability check	○
	Alarm limit of calibration	○
	Periodical check	○
mV (ORP)	Measurement range	±1999.9 mV
	Resolution	0.1 mV
	Repeatability	±0.1 mV±1 digit
Temperature	Measurement range	0.0～100.0℃ (-30.0～130.0℃)
	Resolution	0.1℃
	Repeatability	±0.1℃±1 digit
ION	Measurement method	Ion electrode method
	Measurement range	0.000 μg/L～9999 g/L (mol/L)
	Resolution	4 significant digits
	Repeatability	±0.5% ±1 digit
	Periodical check	○
	Calibration curve point	5
	Addition method measurement	○
Input/output	Input (CH)	1
	USB peripherals (Communication with PC)^*1	○
	USB host（USB memory)	○
	RS-232C (Printer/PC)	○
	Analog output	○
Data	Memory number	2,000
	Interval memory	○
	ID input	○
	Data search	○
Display	Display	Color graphic LCD with capacitive Touch Panel
Display	Multilanguage display	Japanese/English/Chinese/Korean
Function	Navigation function	○
	User guide	○
	Graph display	○
	Printer connectivity（GLP/GMP）	○
	Custom printing function	○
	Temperature compensation（Auto/manual)	○
	AutoHold function	○
	AutoHold setting	○
	Stability function (pH/ION)	○
	Register operator	○
	Security (password）	○
	Version up function	○
Ambient temperature		0 ℃ ～ 45℃
Power		AC adaptor 100 ～ 240 V 50/60 Hz
Dimensions		170(W)×174(D)×73(H) mm (Excluding electrode stand and AC adaptor)
Power consumption		Approx. 9.8 VA
Mass of main unit		Approx. 700 g

scrollable

Description

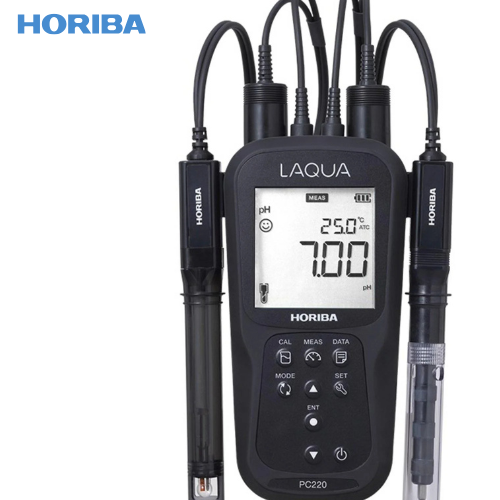

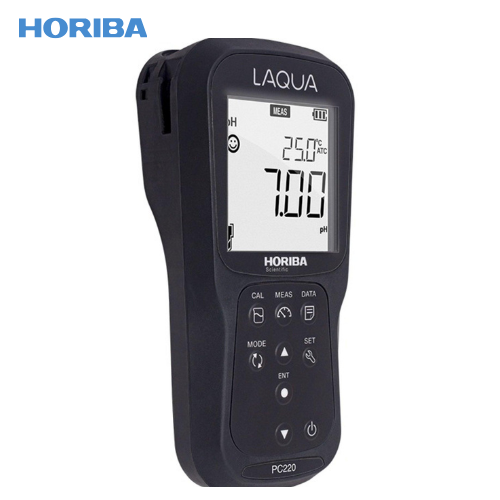

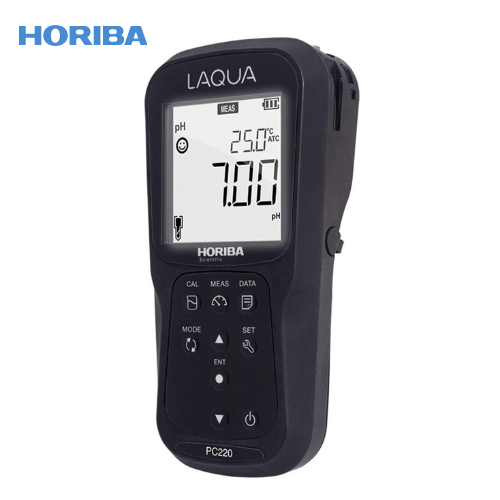

MODEL – LAQUA PC220

Handheld pH/ORP/Conductivity/Resistivity/Total Dissolved Solids/Salinity/Temperature Meter

Waterproof standard handheld meters with backlit LCD, shockproof & scratch-resistant non-slip casing, built-in electrode stand, and foldable meter stand in durable carrying case for routine water quality testing in the field.
