Handheld Meters LAQUA PH220 200 Series

Features
Specifications
Description
Reviews (0)

Automatic pH calibration – up to 5 points (NIST, USA buffers) / up to 6 points (DIN buffers)
0.01 pH resolution
Offset and average slope display
Automatic / manual temperature compensation and temperature calibration
ORP calibration option
Selectable °C / °F temperature readings
Real-time clock with date/time stamp for GLP compliance
Auto log function – stores up to 1000 data sets
Programmable auto shut-off (up to 30 minutes)
Auto Stable, Auto Hold, and Real-Time measurement modes
Programmable calibration alarm (up to 90 days)
Built-in electrode holder (attaches up to 2 electrodes)
Monochrome LCD with white LED backlight (50 × 50 mm)
Phono jack output for PC (USB) connection and printer (RS232) output
IP67 waterproof/dustproof casing, shock & scratch resistant, non-slip
Powered by 2 × AA batteries
Packaged with electrode and calibration solutions in carrying case
3 years meter warranty

Meter Kits Available

Horiba LAQUA PH220 pH/ORP/Temperature Meter Kit

Meter Kit	Package Details
PH220-K	LAQUA PH220 pH/ORP/Temperature meter 2 × AA batteries Manual and quick guide 9652-10D plastic-body, gel-filled pH electrode with integrated temperature sensor pH 4.01, 7.00, 10.01 buffers (60 ml each) Carrying case
PH220-KN	LAQUA PH220 pH/ORP/Temperature meter 2 × AA batteries Manual and quick guide 9652-10D plastic-body, gel-filled pH electrode with integrated temperature sensor pH 4.01, 6.86, 9.18 buffers (60 ml each) Carrying case

LAQUA PH220 Specifications

Model	LAQUA PH220 pH/ORP/Temperature (°C/°F)
pH Range	-2.00 to 16.00 pH
Resolution	0.01 pH
Accuracy	± 0.01 pH
Calibration Points	Up to 5 (USA & NIST) / Up to 6 (DIN)
Buffer Options	USA, NIST, DIN
ORP Range	± 2000 mV
Resolution	0.1 mV (< ±1000 mV), 1 mV (≥ ±1000 mV)
Accuracy	±0.3 mV (< ±1000 mV), 0.3% of reading (≥ ±1000 mV)
Calibration Option	Yes
Temperature Range	-30.0 to 130.0 °C / -22.0 to 266.0 °F
Resolution	0.1 °C / °F
Accuracy	± 0.5 °C / ± 0.9 °F
Calibration Option	Yes
Memory Data	1000
Auto Data Log	Yes
Real-time Clock	Yes
Date & Time Stamp	Yes
Measurement Modes	Auto Stable, Auto Hold, and Real time
Offset & Average Slope Display	Yes
Calibration Alarm	Yes (Programmable: Up to 90 days)
Auto Shut-Off	Yes (Programmable: Up to 30 minutes)
Electrode Status	Yes (On screen display)
Diagnostic Messages	Yes
PC Communication	Yes via PC (USB) cable PN 3200779639
Printer Communication	Yes via Printer (RS232) cable PN 3200779638
Meter Inputs	BNC (for pH electrode), phono (for temperature sensor)
Meter Output	phono (for PC/printer connection)
Display	Custom LCD with backlight
Housing	IP67 rating, shock & scratch resistant, non-slip
Power Requirement	2 x AA batteries
Battery Life	> 500 hours
Meter Dimensions	160 (L) x 80 (W) x 40.60 (H) mm
Meter Weight	Approx. 260 g (with batteries) / 216 g (without batteries)

Description

MODEL – LAQUA PH220

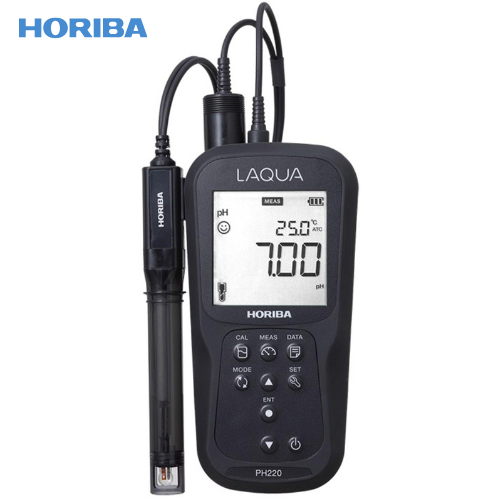

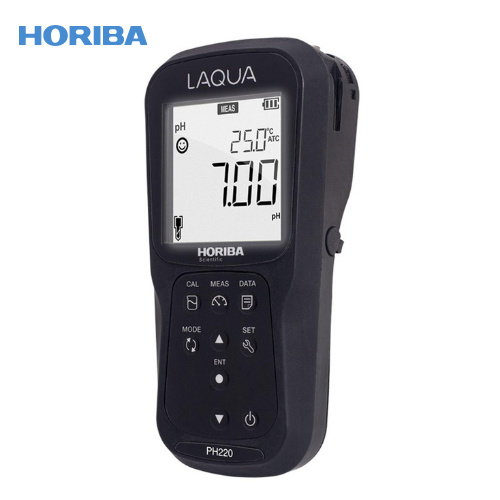

Handheld pH/ORP/Temperature Meter

Waterproof standard handheld meters with backlit LCD, shockproof & scratch-resistant non-slip casing, built-in electrode stand, and foldable meter stand in durable carrying case for routine water quality testing in the field.
